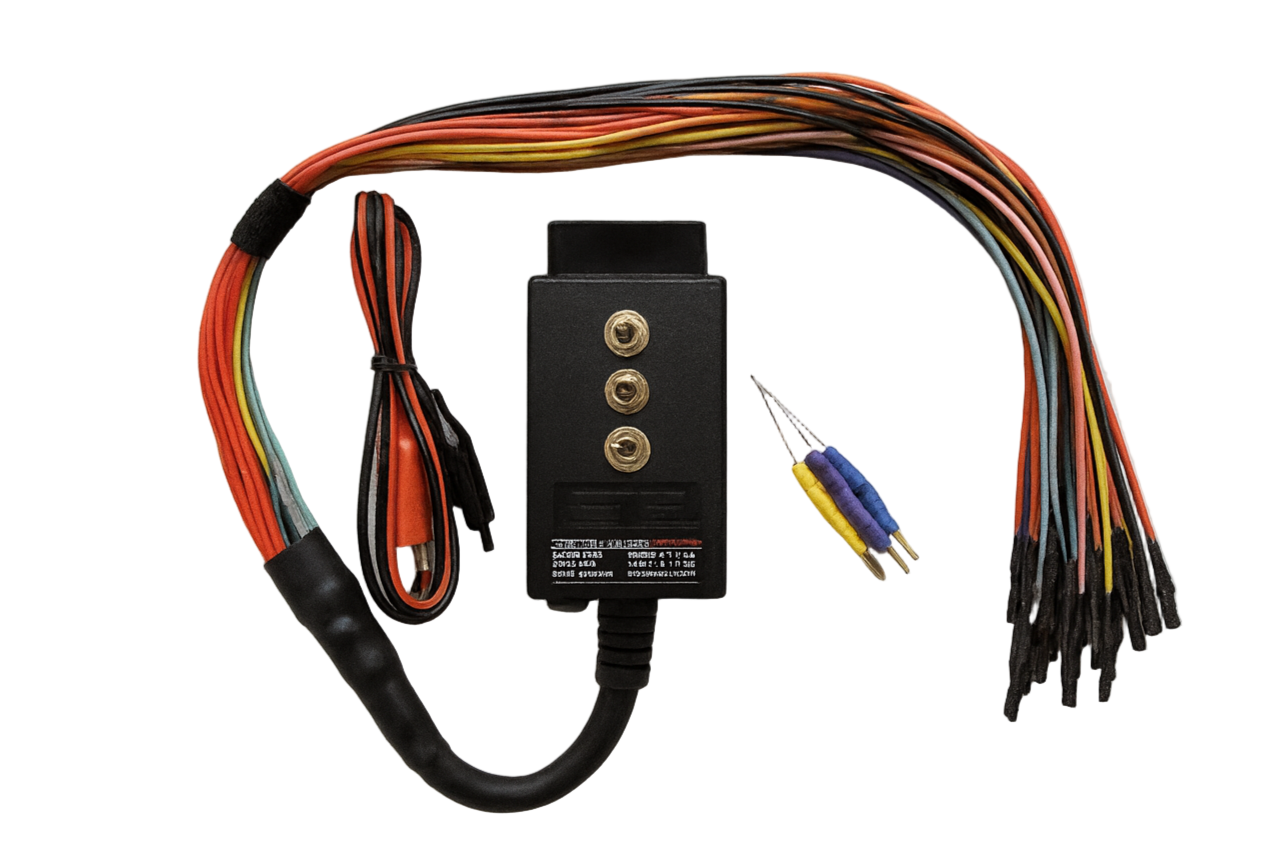

CTS Universal ECU breakout cable with OBD2 port for ECU bench flashing and diagnostics
CTS Universal ECU breakout cable with OBD2 port for ECU bench flashing and diagnostics

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots. Some images are generic

CTS - Universal ECU Breakout Cable

In stock
SKU: COBDA01323
£92.40

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +447349270696
Product Description
Universal ECU breakout cable for bench flashing, diagnostics, and programming. Supports multiple pinouts, OBD2 flash tools, switched ignition, CAN/K-Line, bootpins, and power options—built for pro tuners and busy workshops.
Key Benefits
  • Universal compatibility: Connects to a wide range of ECUs, pinouts, and protocols
  • OBD2 ready: Female OBD2 port for seamless use with most flasher tools
  • Flexible power: 12V/GND crocodile clips or 2.1mm DC jack (power supply not included)
  • Instant status: Built-in power LED for quick confirmation
  • Faster workflow: Switchable ignition, CAN termination, and K-Line reset to cut setup time
What’s Included
  • CTS Universal ECU Breakout Cable
  • Integrated female OBD2 port
  • Built-in switches for ignition, CAN termination, and K-Line reset
Technical Features
  • Power options: 12V + GND crocodile clips, or 2.1mm DC jack
  • Power indicator: LED status light
  • ECU power distribution:
    • 6 × 12V connectors
    • 6 × GND connectors
    • 3 × switched ignition connectors
    • Switched ECU power (ON/OFF)
  • Network and comms:
    • Switched CAN bus termination resistors: 60Ω / 120Ω / OFF
    • 2 × CAN Low, 2 × CAN High
    • 1 × CAN2 Low/High (Ford/Volvo)
    • 2 × K-Line, 1 × L-Line, 1 × VPP (OBD2 Pin 13)
    • K-Line with 1N4148 diode for reset
  • Bootpins (selectable): 560Ω / 1kΩ / 4.7kΩ
Applications
  • Bench flashing/programming
  • Diagnostics and ECU testing
  • Workshop development and troubleshooting
Who It’s For
  • Professional ECU tuners
  • Automotive workshops
  • Diagnostic technicians
Why Choose This Cable
  • Broad ECU coverage in one tool—reduce adapter swaps
  • Faster, cleaner setup with labeled connections and onboard switching
  • Built for reliability in daily workshop use
Compatibility Notes
  • Works with most OBD flash tools via female OBD2 port
  • Low-voltage use for diagnostics/programming only; not for permanent in-vehicle installation
  • External power supply required (not included)
