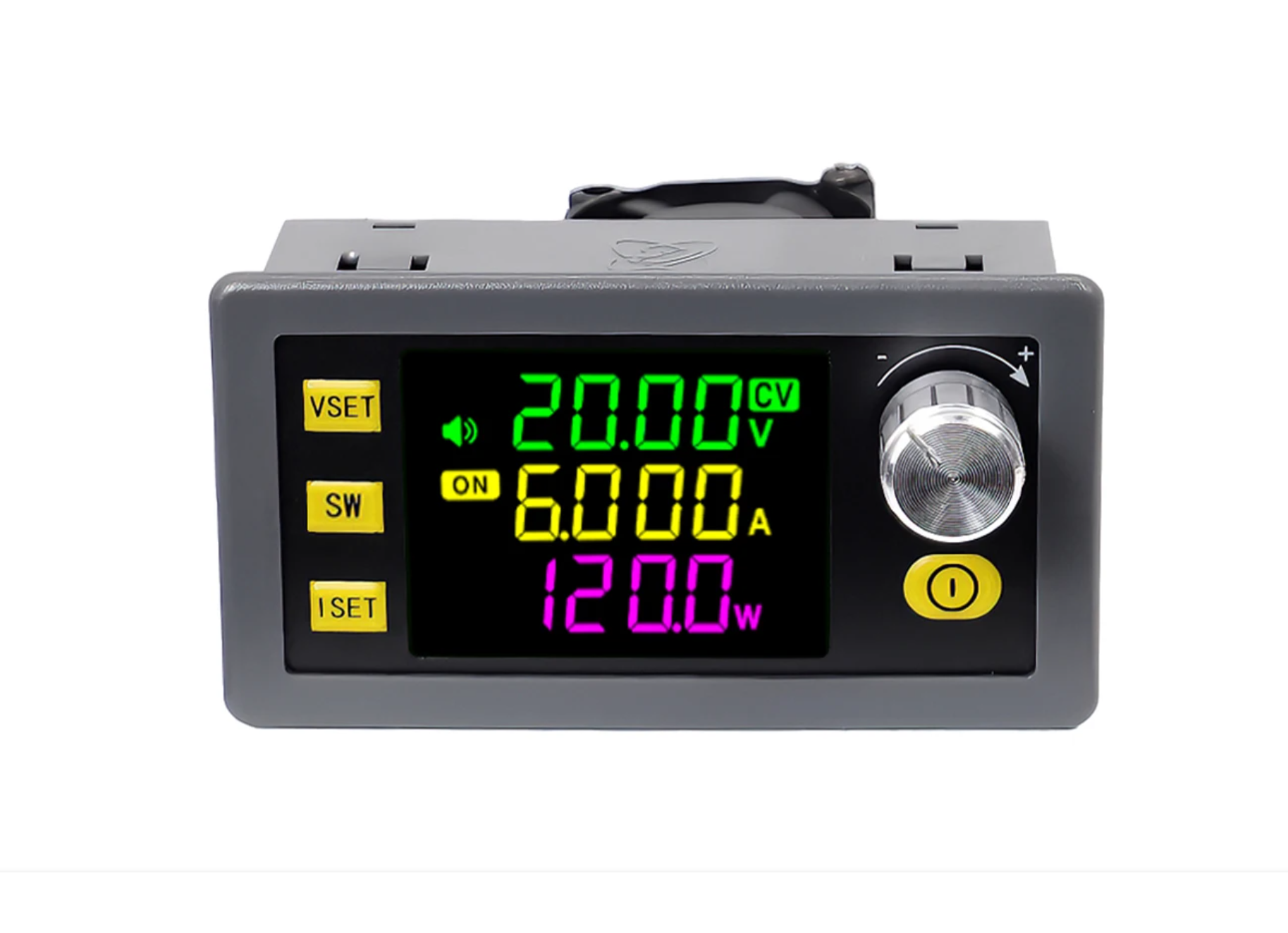

Digital Adjustable Voltage Regulator
Check compatibility before ordering
Check the part reference, product description and selected options against your application. Unsure which product you need? Ask our team before ordering.
Couldn't load pickup availability
Need help choosing?

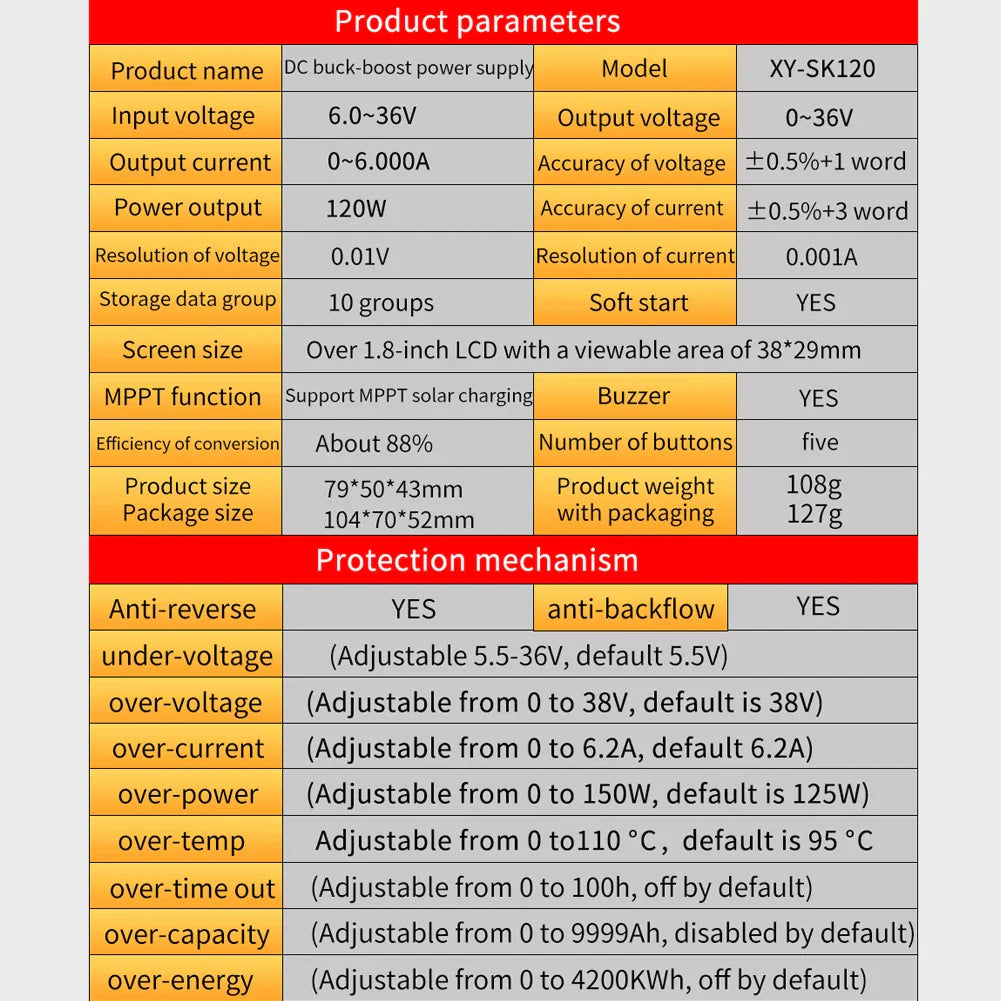

Specifications:
Name: Power Regulator
Material: plastics

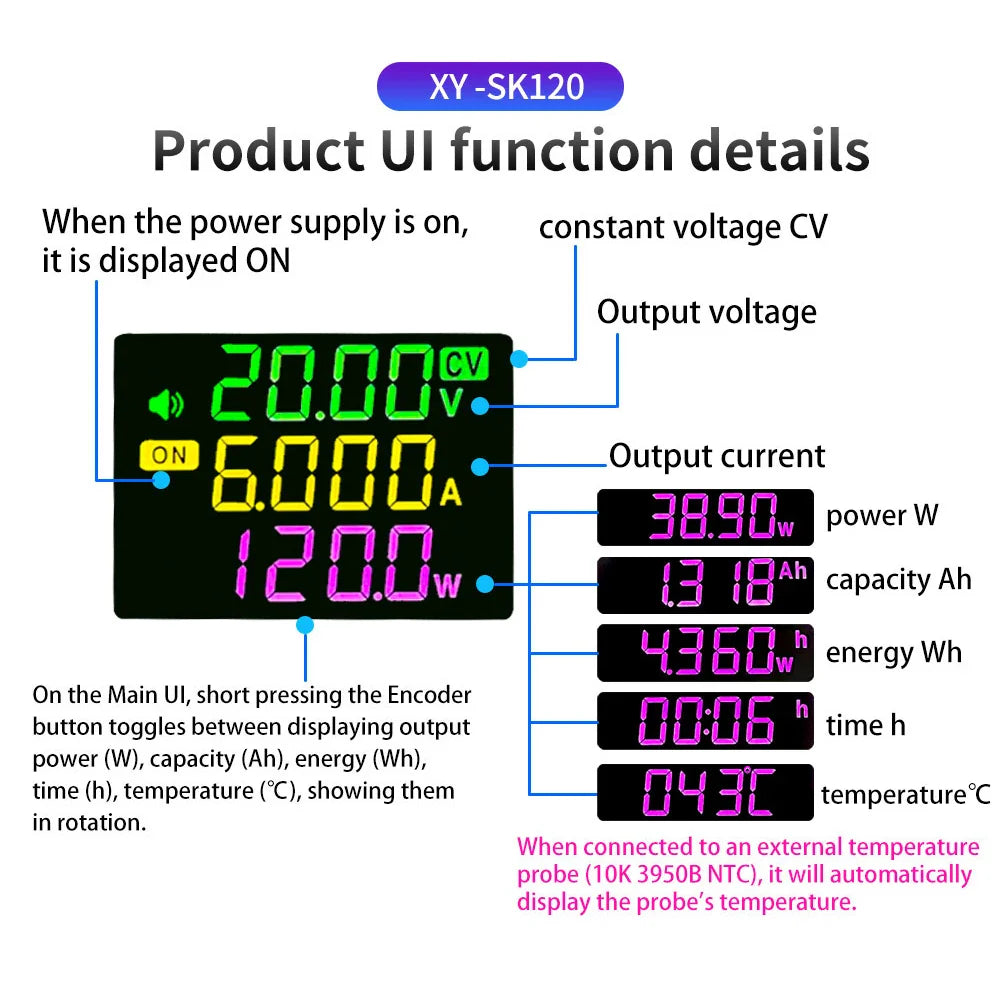

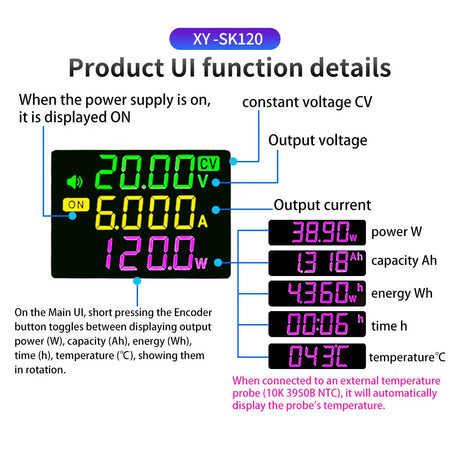

Display: 38*29mm LCD display
Input voltage: 6.0-36V
Output voltage: 0-36V
Output current: 0-6.000A
Voltage accuracy: ±0.5%+1 word
Output power: 120W
Current accuracy: ±0.5%+3 words
Voltage resolution: 0.01V
Current resolution: 0.001A
Storage data group: 10 groups
Number of keys: 5
Buzzer: Yes
Conversion efficiency: 88% or so
Soft starting: Yes
Maximum Power Point Tracking function: Support Maximum Power Point Tracking solar charging
Protective mechanism:
Input reverse connection protecting: Yes
Output backflow protecting: Yes
Input undervoltage protective value: (5.5-36V adjustable, default 5.5V)
Output over-voltage protective value: (0-38V adjustable, default 38V)
Output over-current protective value: (0-6.2A adjustable, default 6.2A)
Output over power protective value: (0-150W adjustable, default 125W)
Over-temperature protective value: (0-110℃ adjustable, default 95℃)
Timeout protective value: (0-100H adjustable, default off)
Overcapacity protective value: (0-9999AH adjustable, default off)
Over energy protective value: (0-4200KWH adjustable, default off)

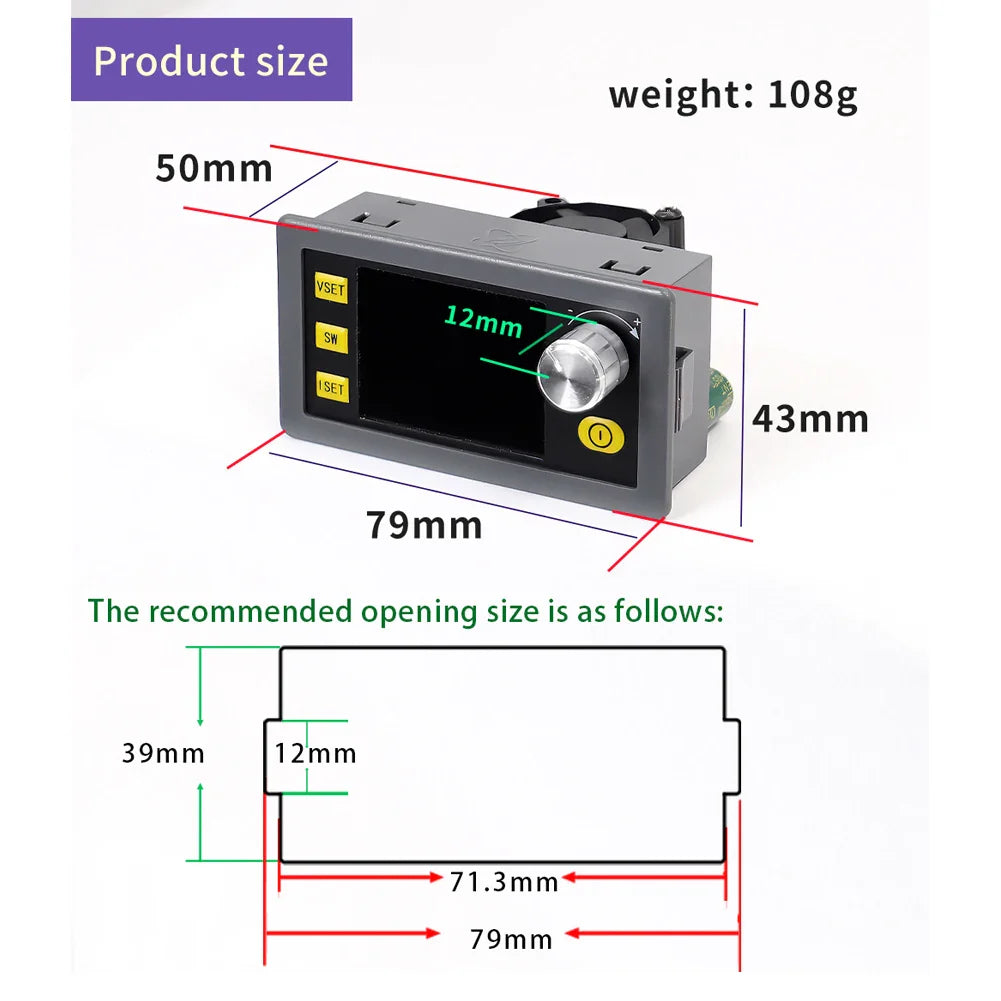

Item size: 79 * 50 * 43mm / 3.11 * 1.97 * 1.69in
Item weight: 108g / 3.81ounce
Package size: 104 * 70 * 52mm / 4.09 * 2.76 * 2.05in
Package weight: 127g / 4.48ounce
Packing List:
1 * Power supply
