I/O Terminal Breakout Cable

In stock
SKU: 12527581222
£55.00

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +447349270696

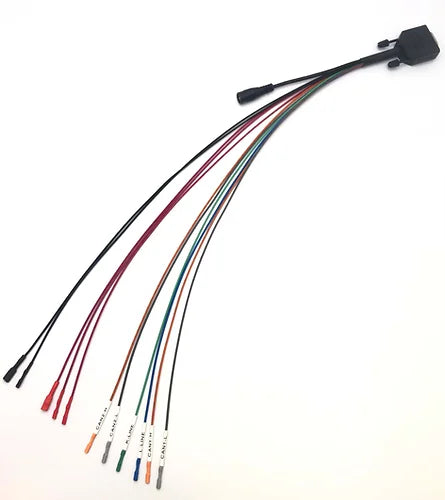

I/O Terminal Breakout Cable

for use with I/O Terminal programming tool. Used for easy connection to different ECUs for a D-Sub 9-way connector.

For further info see I/O Terminal.

  • DC Power connection 5.5mm X 2.1mm Female
  • Cable Markers make selecting cables easy without needing to refer to a colour chart.
  • +12V and GND connections both with 2x large and 2x small connectors
  • Total Length: (Approx) 50cm
  • HIGH-QUALITY CABLE

Pinout as below:
  • 1 - CAN1-H
  • 2 - CAN1-L
  • 3 - NC
  • 4 - K-Line
  • 5 - GND
  • 6 - L-Line
  • 7 - CAN2-H
  • 8 - CAN2-L
  • 9 - +12V
