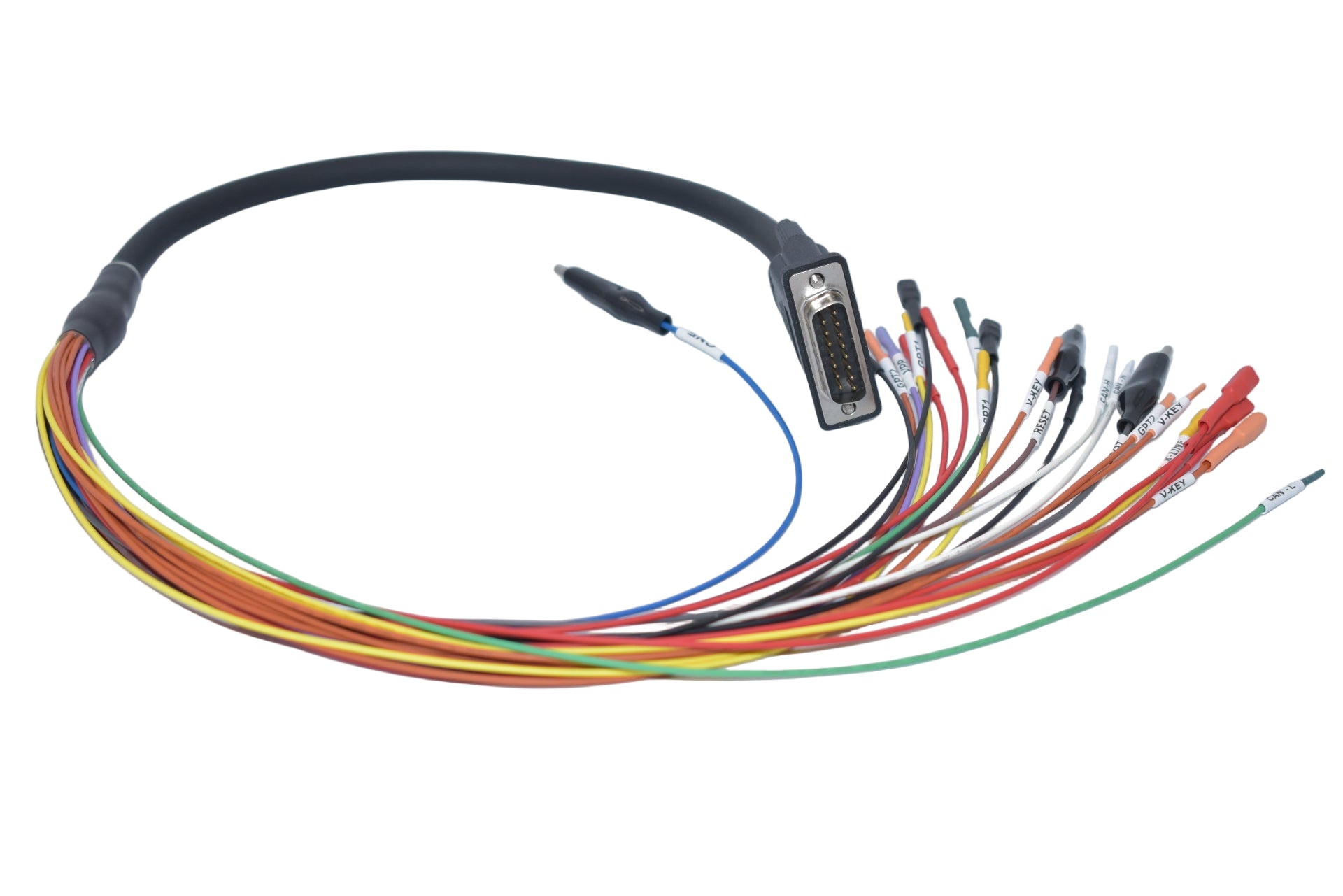

Scanmatik DLX Breakout Cable — DB15 with Integrated Micro Pins
Description
The Scanmatik DLX Breakout Cable is engineered for precision diagnostics and reliable ECU/TCU bench flashing. Featuring a robust DB15 connector with integrated micro pins, this breakout cable ensures secure, low-resistance connections for even the most demanding automotive applications.
The Scanmatik DLX Breakout Cable is engineered for precision diagnostics and reliable ECU/TCU bench flashing. Featuring a robust DB15 connector with integrated micro pins, this breakout cable ensures secure, low-resistance connections for even the most demanding automotive applications.
Key Features
-
Integrated Micro Pins:
Fine-pitch micro pins provide optimal contact with sensitive ECU/TCU terminals, reducing the risk of signal loss or intermittent connections. -
High-Quality Construction:
Manufactured using premium materials for durability, flexibility, and long service life in workshop environments. -
Direct Pin Access:
Enables individual pin probing, voltage measurement, and signal tracing without disassembling factory connectors.
Applications
- ECU and TCU bench flashing
- Custom diagnostics and advanced automotive programming
Why Choose This Cable?
- Precision-machined micro pins ensure reliable contact with a wide range of ECU connectors
- Supports fast, safe troubleshooting and programming without risk to OEM terminals
- Perfect fit for Scanmatik DLX workflows using DB15
| Pinout Male DB15 | signal |
| 1 | |
| 2 | VPP |
| 3 | GPT2 |
| 4 | CNF1 |
| 5 | 12V_OUT |
| 6 | |
| 7 | CAN-H |
| 8 | BOOT2 |
| 9 | |
| 10 | BOOT2 |
| 11 | GND |
| 12 | GPT1 |
| 13 | |
| 14 | K-LINE |
| 15 | CAN-L |
