Scanmatik DLX — Power + Signal Control in One Box

In stock
SKU: 22124472200549
£110.00

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +447349270696

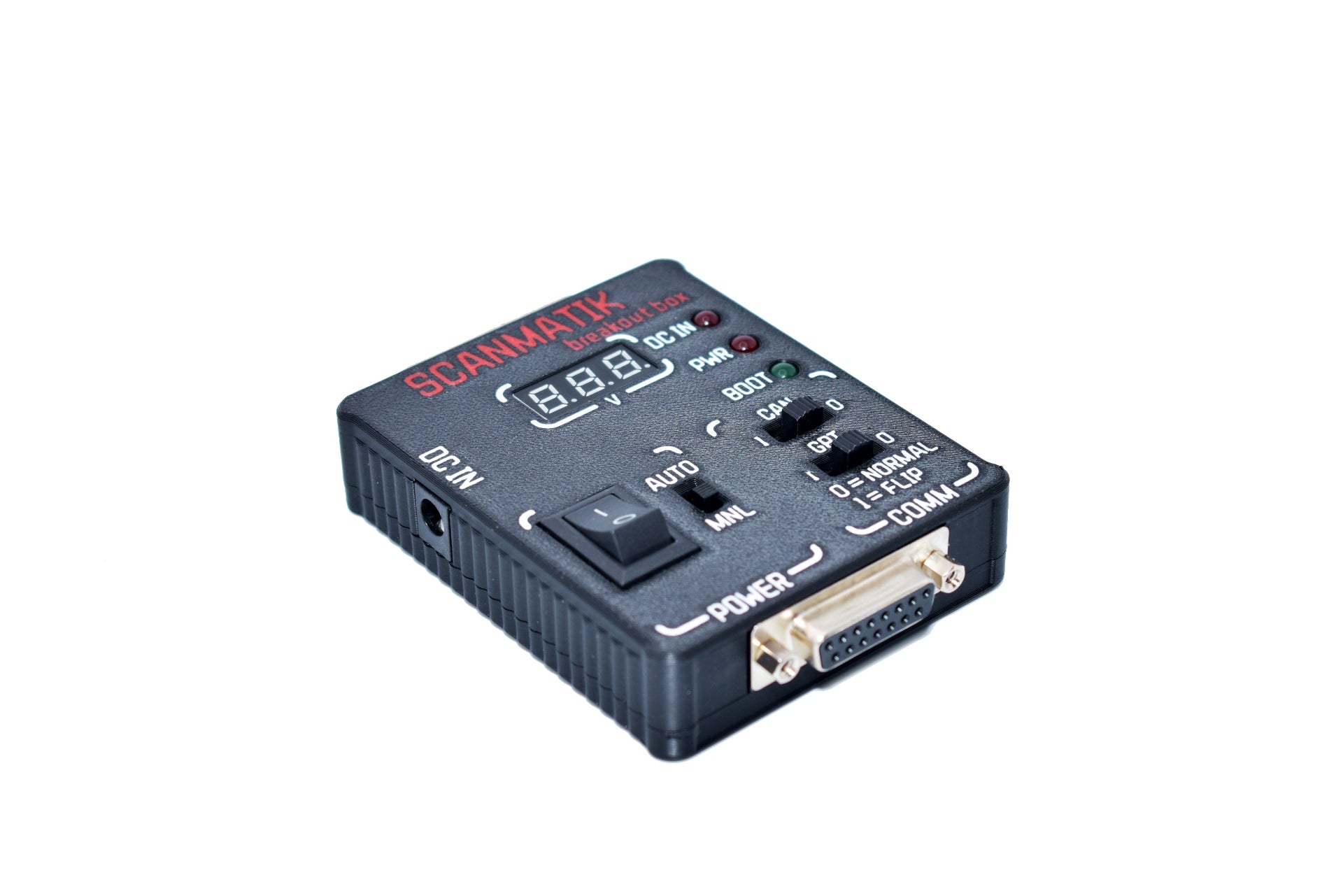

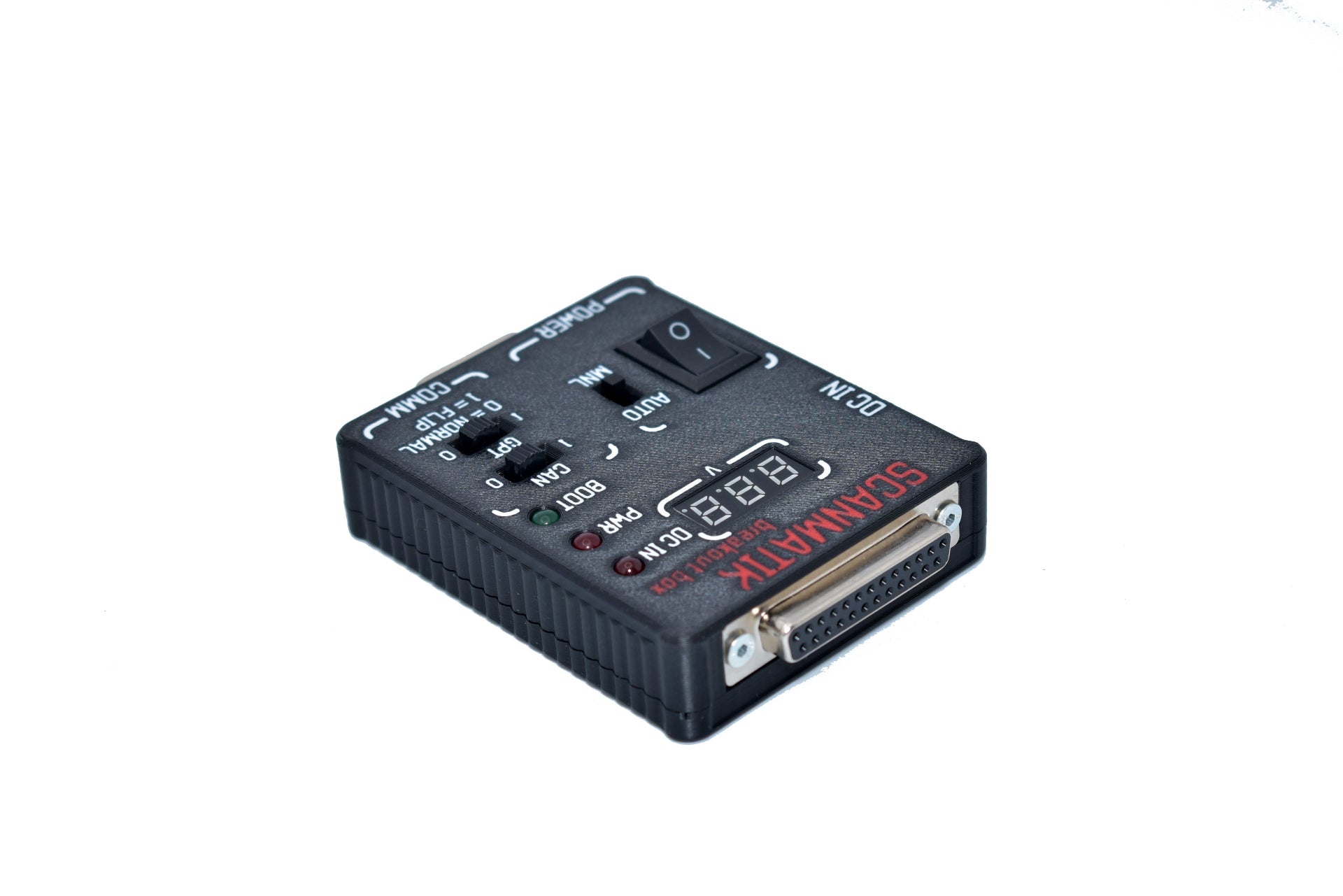

The Scanmatik DLX is the essential inline tool for professional ECU and TCU work. Designed to streamline your bench setup, it sits seamlessly between your Scanmatik and any DB15 ECU/TCU cable (breakout or direct). Enjoy safe, precise power control, live voltage monitoring, and instant CAN/GPT signal inversion—no repinning, no guesswork, just efficiency.

Key Features

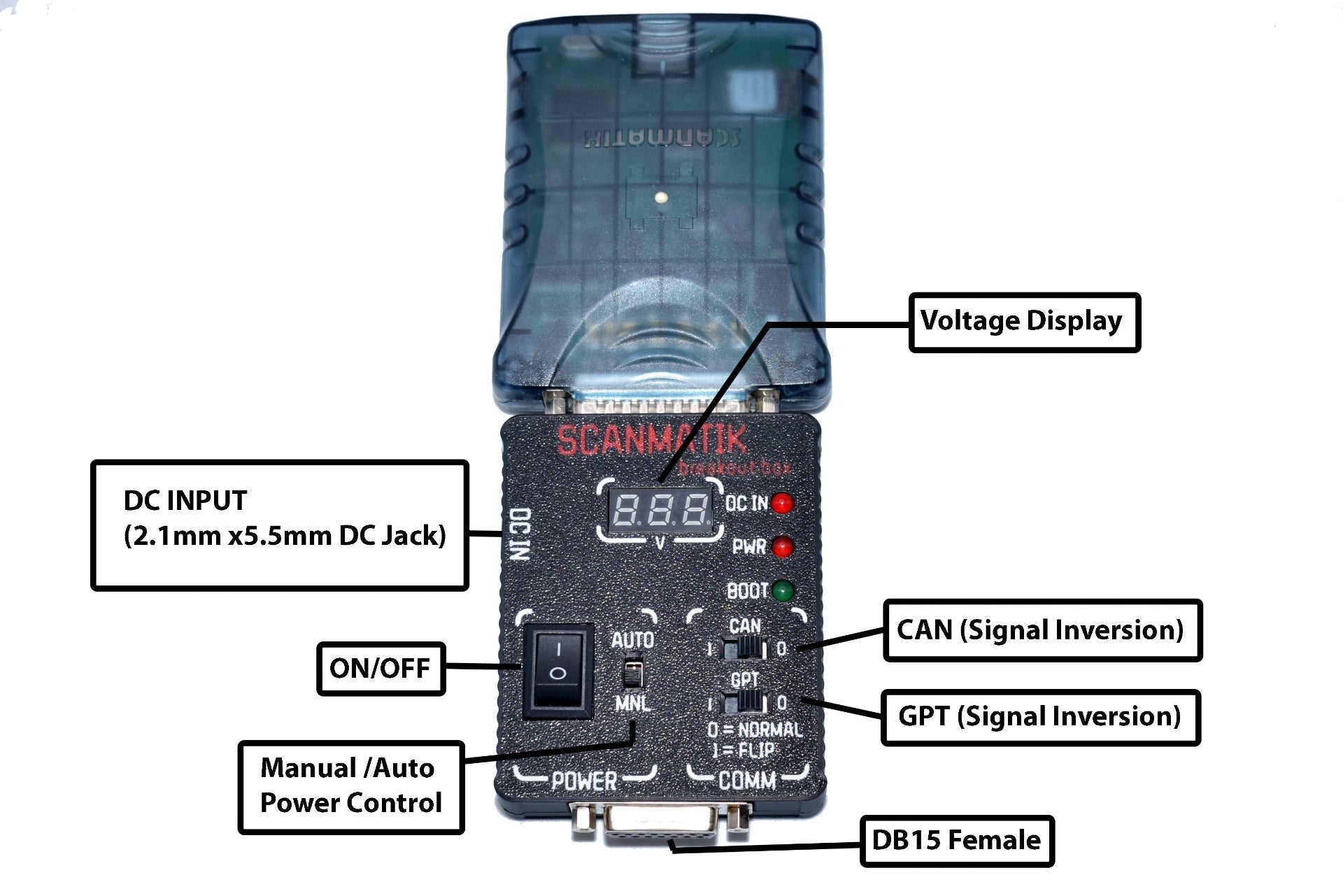

  • Connector Compatibility:
    • DB25 female (to Scanmatik)
    • DB15 female (to ECU/TCU)
  • Power Input:
    • 5.5×2.1 mm barrel jack (center-positive)
  • Power Control:
    • ON/OFF rocker switch
    • AUTO/MNL slide for manual or automatic power management
  • Live Monitoring:
    • Bright 3-digit LCD for real-time ECU/TCU supply voltage
  • Status Indicators:
    • DC IN, PWR (output active), BOOT (communication/activity) LEDs
  • Signal Inversion Tools:
    • Dual slide switches for instant flipping/inversion of:
      • CAN-H/CAN-L
      • GPT1/GPT2
    • Ideal for mixed looms and third-party adapters

Why Choose Scanmatik DLX?

  • Instantly correct reversed CAN/GPT pairs or “no comms” issues—no need to open connectors
  • Safely bring up bench ECUs/TCUs with visible voltage and hard power cut-off

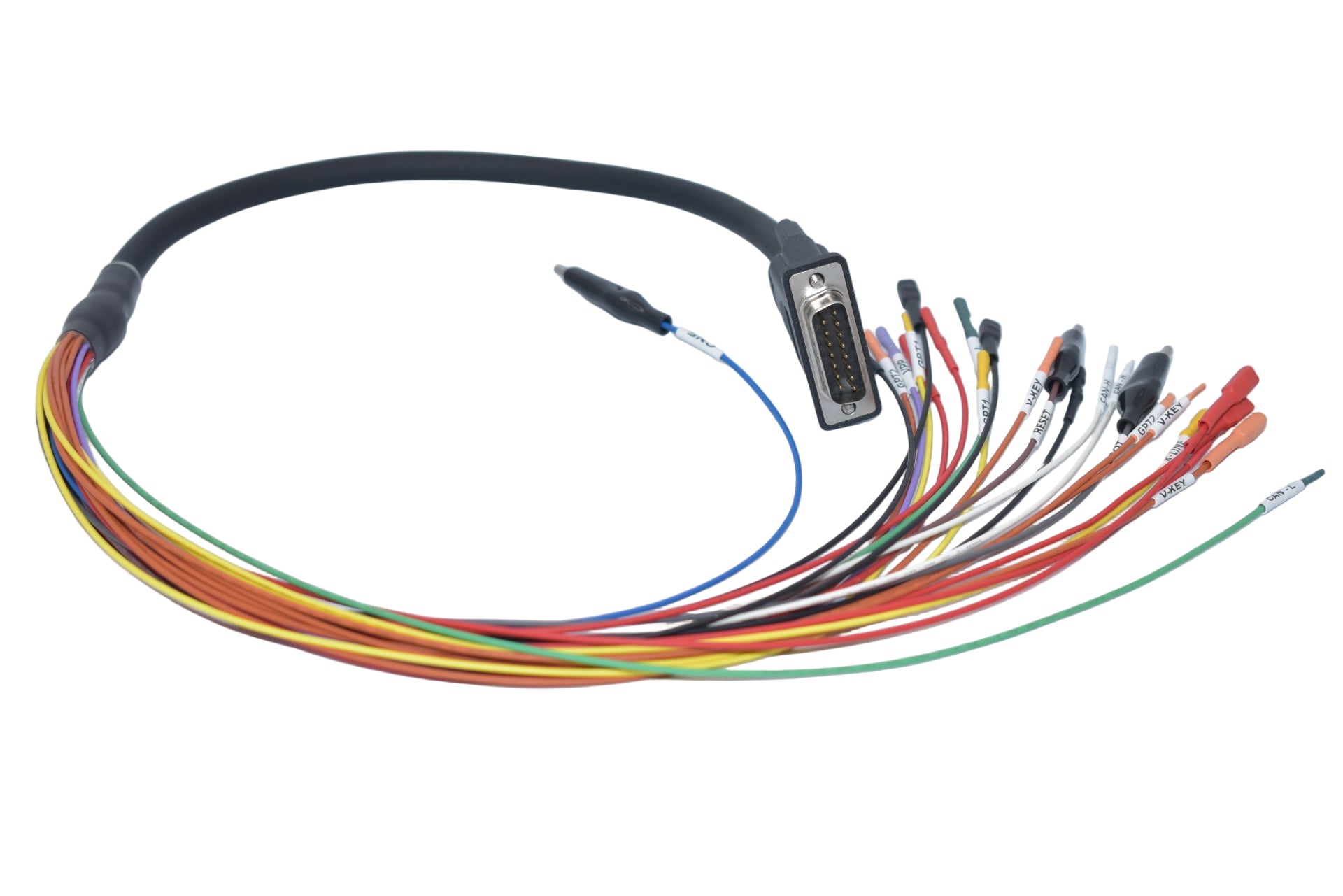

  • Drop-in compatibility with existing breakout looms and adapters
  • Designed for professional reliability and workflow speed

Quick Start

  1. Connect DB25 to Scanmatik, DB15 to ECU/TCU.
  2. Plug in DC supply, select AUTO or MNL mode, then toggle ON.
  3. If communication fails, use the CAN or GPT FLIP switches and retry.

Best Practices

  • Always verify supply voltage and polarity before enabling power.
  • Ensure both connectors are fully seated before switching ON.

Pinout (Based on KTAG / PowerBox)

Pinout Male DB15 signal
1
2 VPP
3 GPT2
4 CNF1
5 12V_OUT
6
7 CAN-H
8 BOOT2
9
10 BOOT2
11 GND
12 GPT1
13
14 K-LINE
15 CAN-L

Order by 12AM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

Orders over £150 qualify for Free UK Shipping.

International shipping - Contact us!

Your product is covered by a 12 month Warranty unless specifically specified.
