The TEXA NAVIGATOR TXT MULTIHUB 2 is TEXA’s flagship diagnostic interface, engineered for professional diagnostics across off-highway vehicles, heavy-duty machinery, and industrial equipment. Designed for workshops and fleet operators requiring multibrand, multi-protocol support, it delivers seamless diagnostics for construction, agricultural, and earthmoving vehicles.
Diagnosis
For OFF-HIGHWAY diagnostics, TEXA offers the unbeatable combination of the NAVIGATOR TXT MULTIHUB 2 for use in tough and outdoor environments.
The NAVIGATOR TXT MULTIHUB can also be connected via Bluetooth to a Personal Computer, and can be used to diagnose all kinds of vehicles in the TRUCK, CAR, MARINE, and BIKE environments.
Technical Specifications
Main processor:
• Type: iMX6 1 GHz
• DDR3L SDRAM: 512 MByte
• Mass Storage: eMMC 8 GByte
Coprocessor:
• Type: STM32H735IGK6 550MHz
• RAM: 2 MByte SRAM, 32 MByte SDRAM
• Flash: 2 MByte
Power supply connector: PWR: 2.1 DC jack
Power supply: 12 – 24 V (direct voltage)
(from vehicle battery via OBD connector or specific
wirings)
Consumption: 1 A @12 V
0.5 A @24 V

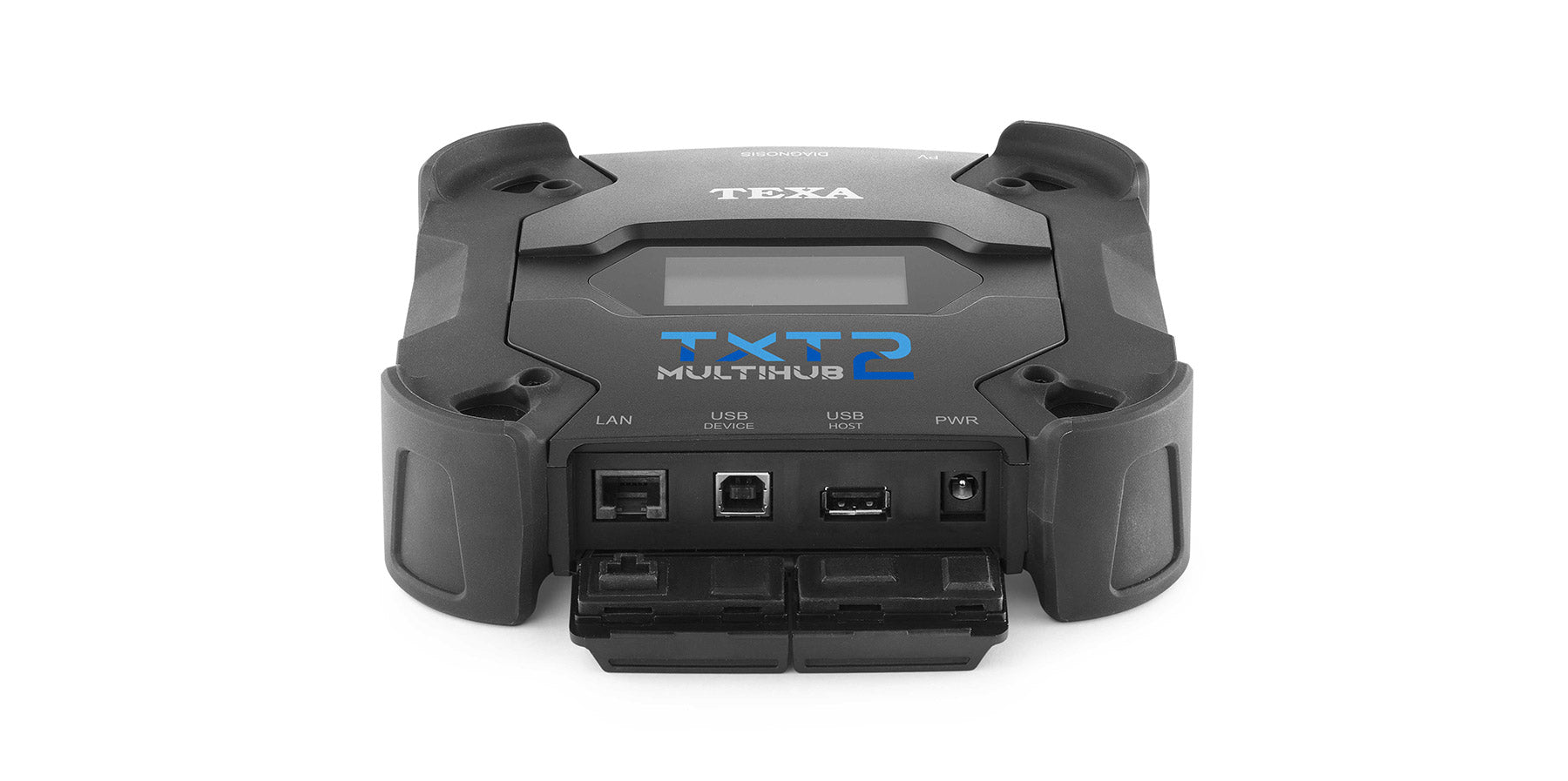

USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)
Bluetooth communication: BDR/EDR/LE1M
Wi-Fi communication: WiFi IEEE 802.11 b/g/n20 (2412 ~ 2462 MHz)
Operational band: 2400 ~ 2483,5 MHz
Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)
Diagnostic connectors: DIAGNOSIS: DSUB-26HD (ISO 22900-1)
Electronic switch: 2-way, 13 independent positions
Control units reprogramming connector: PV (SAE J2534-1)
Supported protocols:
• Blink codes
• K, L (with 100 mA current protection), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• CAN_FD 11898-2:2016 4 channels
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1
• SAE J1708
• Ethernet DoIP ISO13400-3

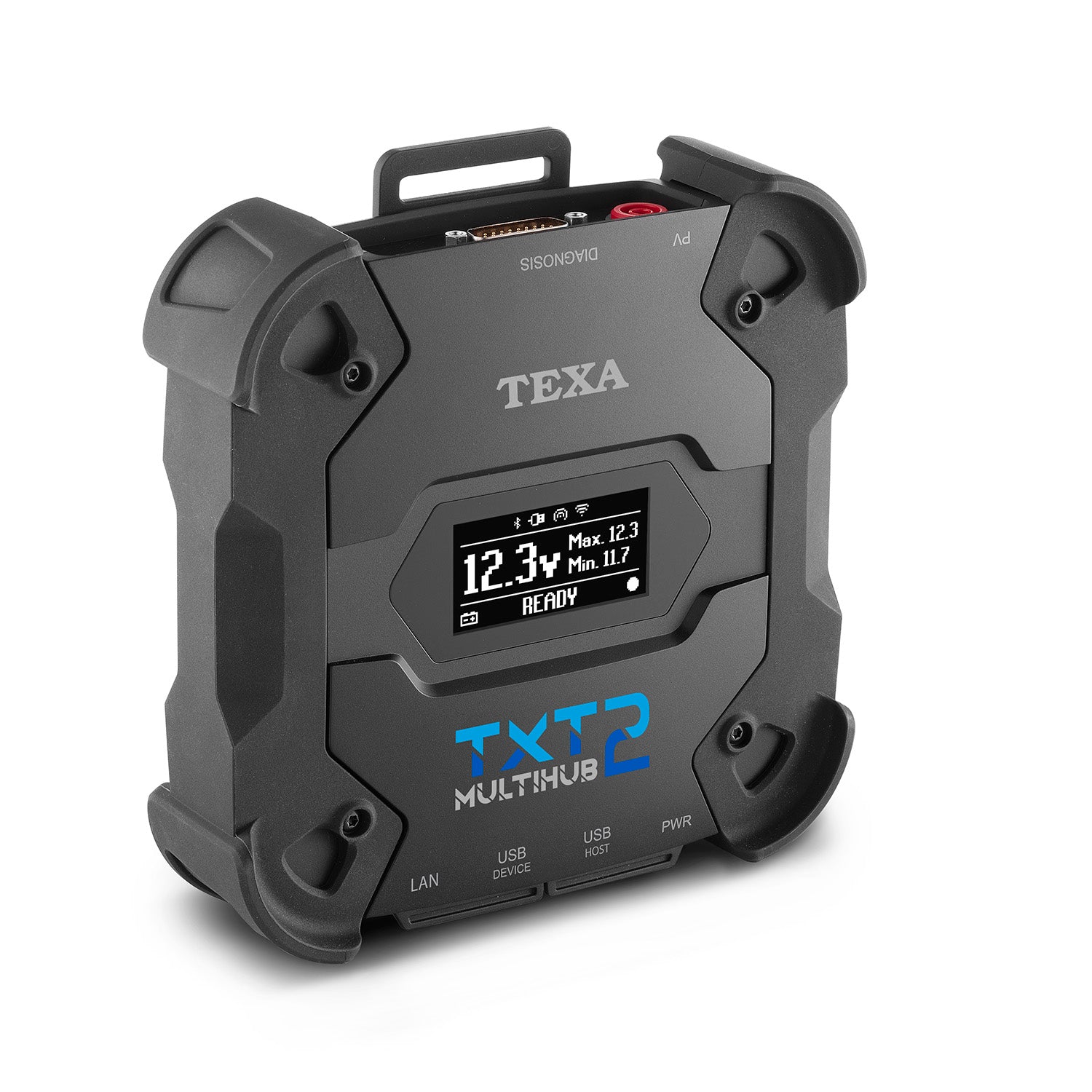

User interface: Display OLED 64×128 dot
Operating temperature: 0 ÷ 50 °C
Storage temperature: – 20 ÷ 60 °C
Operating moisture: 10% ÷ 80% without condensation
Weight: 600 g
IP protection level: IP53 (With properly closed protective caps)
Directives:
• RED 2014/53/EU
• RoHS 2011/65/EU and Delegated Directive 2015/863/EU
Electromagnetic compatibility:
• ETSI EN 301 489-1
• ETSI EN 301 489-17
Radio systems: ETSI EN 300 328
Electrical safety: EN 62368
What's Included:
•TXT MULTIHUB 2 VCI
•IDC6 PLUS OHW Software for PC
OHW Power Supply
• Deutsch 9 Pin Adapter
• 12 Months OHW Texpack
Software Updates
• 12 Months OHW Tex@info
Technical Support
• 2 Years Warranty
