Truck Explorer DirectConnect 2U kit
Regular price
£840.00
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!

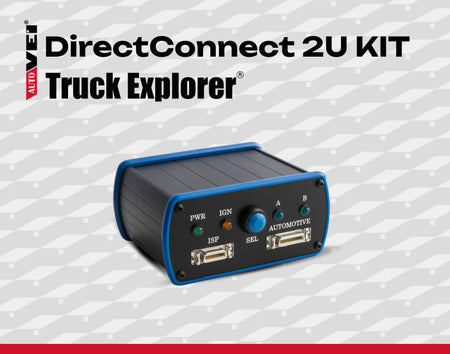

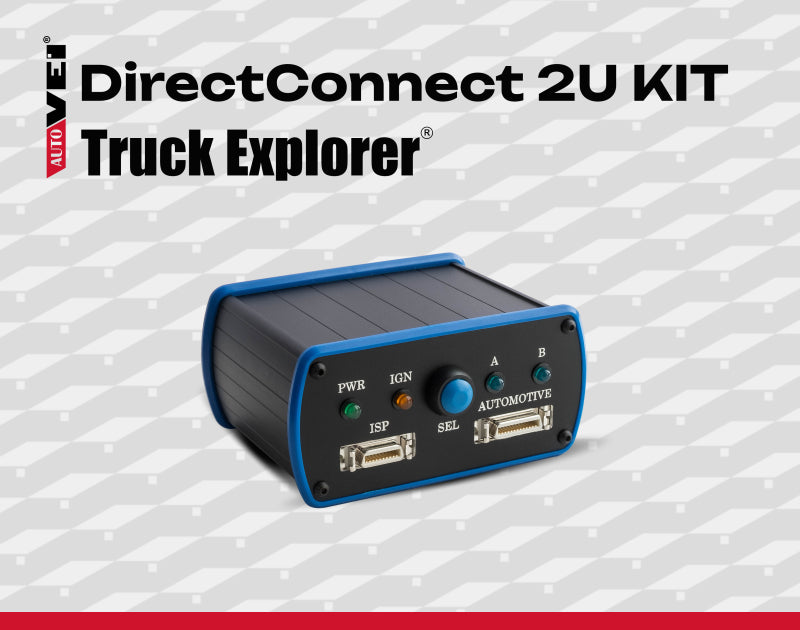

DirectConnect 2U tool kit for working on bench with ECU
DirectConnect 2U tool (DC2U) is a special tool kit for Truck Explorer - VEI owners who want to work with control modules on the bench or boot modes. For Memory read & write operations or programming and bench diagnostics.
This is additional hardware set that works only with Truck Explorer and VEI interface (V6/V7/V8). Set includes 5 items, that are stated below the description.
This is additional hardware set that works only with Truck Explorer and VEI interface (V6/V7/V8). Set includes 5 items, that are stated below the description.
- Automotive port is needed for DC2 (bench) connection cable and working without opening control module.
- How to connect on bench?
- Need special cable for each control module - available DC2 cables.
- ISP port is needed for BSL mode adapters or JTAG+BDM dongle (for connection in boot mode).
- How to connect in BSL mode?
-
How to connect in JTAG or BDM mode?
- Boot mode helps Read & Write unknown or damaged firmware from vehicle control units.
- BSL mode, TriCore BL mode, Motorola BKG mode, NEC serial BL ready, JTAG, BDM.
- Supported: J1708, BSL UART, SPI (SCI), MBench, JTAG, BDM.
Please ask us about each control module and we will assist which cables and adapters are needed to work with them.
DirectConnect 2U designed to work in a room temperature higher than +5.
DirectConnect 2U toolkit includes:
| Nr. | Code | Includes in DC2U kit |
| 1 | D185101084 |
DirectConnect 2U box
|
| 2 | D205116001 |

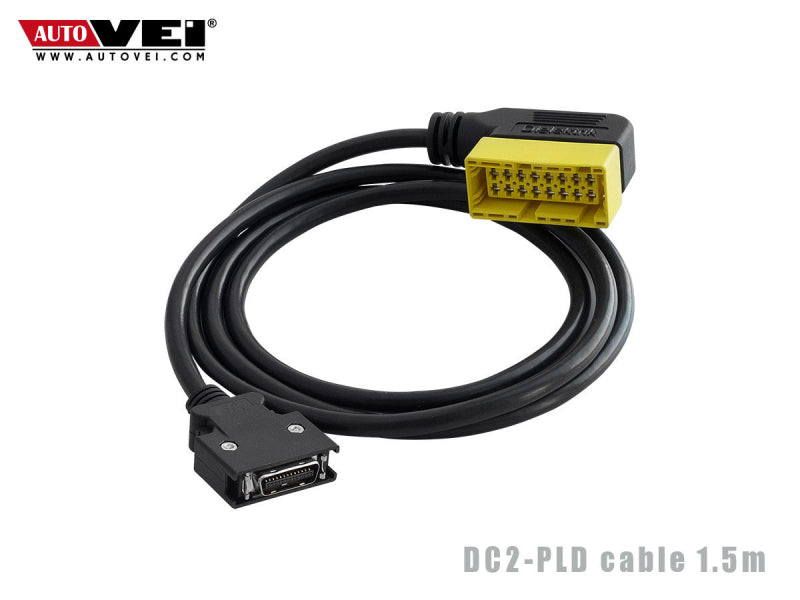

DC2U-PLD cable 1.5m
|
| 3 | D225101004 |

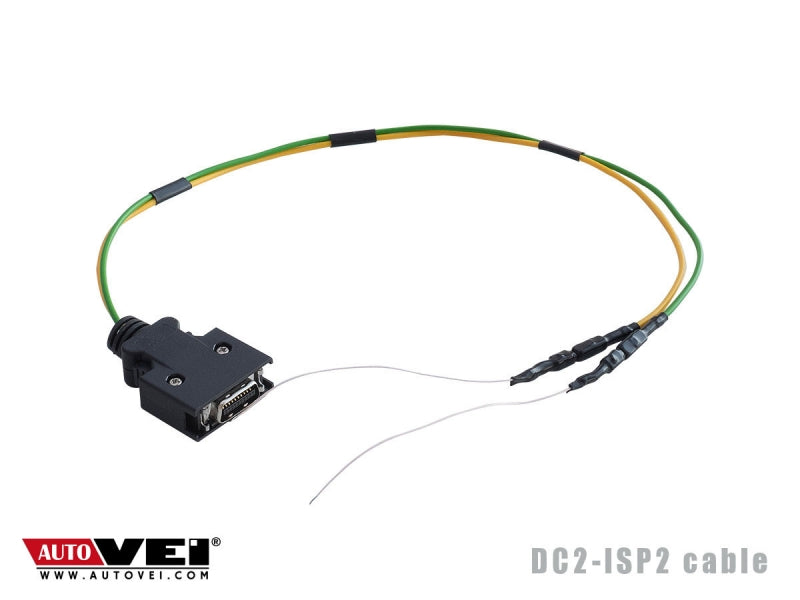

DC2U-ISP2 cable for BSL mode
|
| 4 | D165120003 |

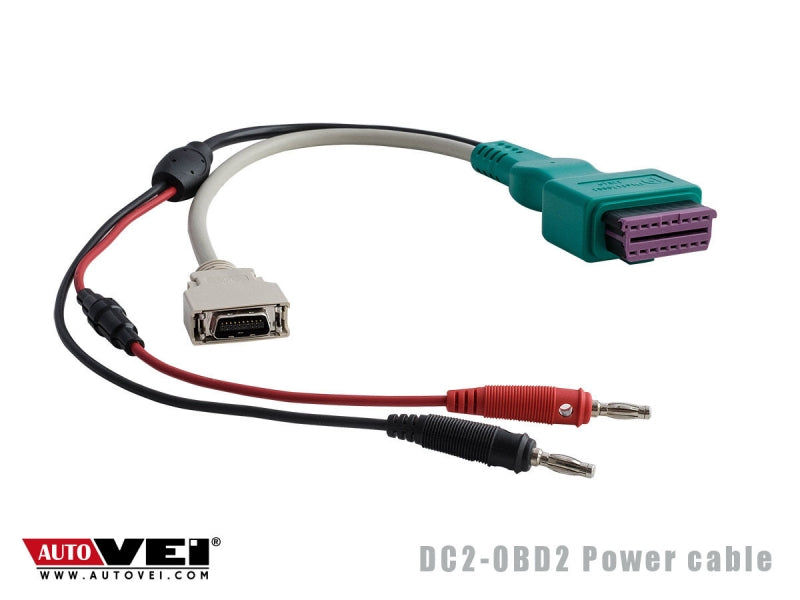

DC2U-OBD2-Power cable
|
| 5 | D2051S8001 | License DC2 |
